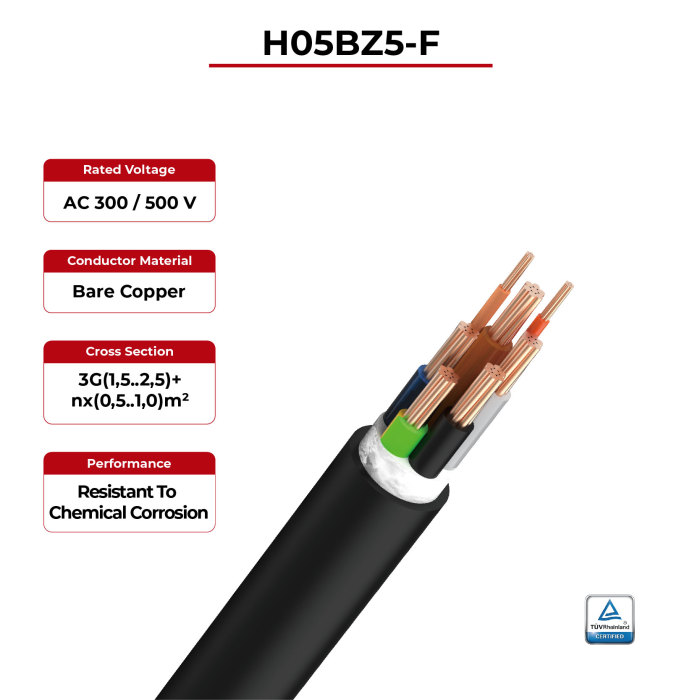

300V Charging Cable EN50620/IEC62893 EVC H05BZ5-F TÜV
300V Charging Cable EN50620/IEC62893 EVC H05BZ5-F TÜV
Conductor: 3x1.5mm²+(0～10)x(0.5～1.0)
Color: Optional color (except white)
Color: Optional color (except white)
| Conductor | Bare copper |
|---|---|
| Insulating material | XLPO |
| Out layer material | TPU |
| Rated voltage | AC 300 / 500 V |
| Temperature rating | -40°C to +90°C |
| Flame Test | IEC60332-1 |
| According to | EN50620, IEC62893 |
Detail Information
H05BZ5-F Charging Cable Advantages
EN50620/IEC62893 EVC H05BZ5-F Charging Cable
A TUV certified cable that can be used with SUNKEAN charging piles, with a TPU sheath, skin-friendly and wear-resistant material. It has passed the IEC60332-1 fire test and can be safely used in industrial and commercial places or home charging piles.
· Low temperature resistance
· UV resistant
· Acid and alkali resistant
· Ozone resistant
· Resistant to chemical corrosion
H05BZ5-F Charging Cable Technical Data
|
Conductor:
|
Bare copper
|
|
|
Insulating material / color:
|
XLPO
Main core: Blue, brown, black, gray, yellow and green
Single wire core:Orange,red |
|
|
Out layer material / color:
|
TPU / Optional colors(except white)
|
|
|
Rated voltage:
|
AC 300 / 500 V
|
|
|
Temperature rating:
|
-40°C to +90°C
|
|
Flame Test: | IEC60332-1 | |
According to: | EN50620, IEC62893 | |
H05BZ5-F Charging Cable Product description
Cross section
(AWG) |
Permissible ampacity(Ref.)
(A) |
Insulation Nom Thickness
(mm) |
Outer Sheath Nom Thickness
(mm) |
Non-shiedlded Cable O.D.
(mm) |
Conductor Resistance
Max (Ω/km, 20°C) |
3x1.5mm2+(0~10)x(0.5~1.0) |
10
|
0.60
|
1.50
|
8.9~11.6
|
13.3 |
3x2.5mm2+(0~10)x(0.5~1.0) |
16
|
0.60
|
1.60
|
10.1~13.2
|
7.98 |
