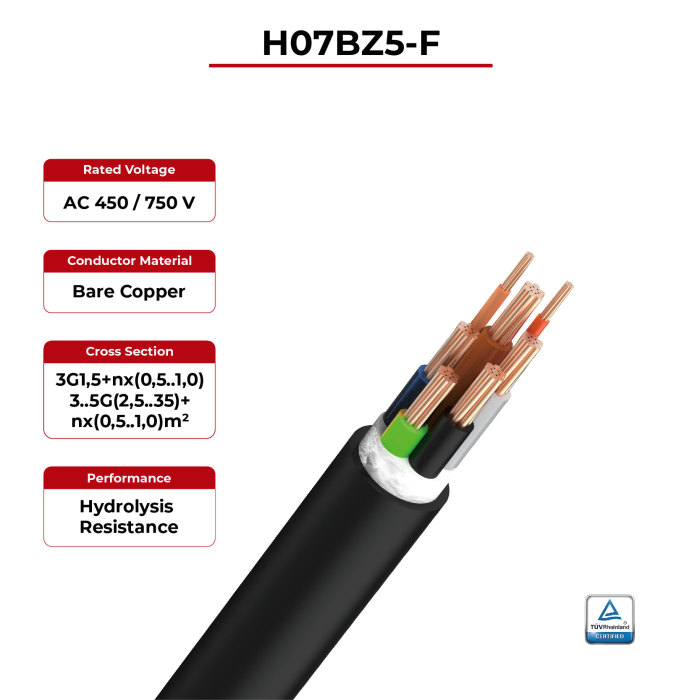

450V Charging Cable EN50620/IEC62893 EVC H07BZ5-F TÜV
450V Charging Cable EN50620/IEC62893 EVC H07BZ5-F TÜV
Conductor: 1.5~35mm²
Color: Optional color (except white)
Color: Optional color (except white)
| Conductor | Bare copper |
|---|---|
| Insulating material | XLPO |
| Out layer material | TPU |
| Rated voltage | AC 450 / 750 V |
| Temperature rating | -40°C to +90°C |
| Flame Test | IEC60332-1 |
| According to | EN50620, IEC62893 |
Detail Information
Advantages
EN50620/IEC62893 EVC H07BZ5-F Charging Cable
A TUV certified cable that can be used with SUNKEAN charging piles, with a TPU sheath, skin-friendly and wear-resistant material. It has passed the IEC60332-1 fire test and can be safely used in industrial and commercial places or home charging piles.
· Low temperature resistance
· Oil resistant
· Acid and alkali resistant
· Ozone resistant
· Hydrolysis resistance
Technical Data
|
Conductor:
|
Bare copper
|
|
|
Insulating material / color:
|
XLPO
Main core: Blue, brown, black, gray, yellow and green
Single wire core:Orange,red |
|
|
Out layer material / color:
|
TPU / Optional colors(except white)
|
|
|
Rated voltage:
|
AC 450 / 750 V
|
|
|
Temperature rating:
|
-40°C to +90°C
|
|
Flame Test: | IEC60332-1 | |
According to: | EN50620, IEC62893 | |
Product description
Cross section
(AWG) |
Permissible ampacity(Ref.)
(A) |
Insulation Nom Thickness
(mm) |
Outer Sheath Nom Thickness
(mm) |
Non-shiedlded Cable O.D.
(mm) |
Conductor Resistance
Max (Ω/km, 20°C) |
3x1.5mm2+(0~10)x(0.5~1.0) |
10
|
0.70
|
1.50
|
9.2~11.8
|
13.3 |
3x2.5mm2+(0~10)x(0.5~1.0) |
16
|
0.70
|
1.60
|
10.1~13.2
|
7.98 |
3x4mm2+(0~10)x(0.5~1.0) | 20 | 0.70 | 1.70 | 12.1~15.5 | 4.95 |
3x6mm2+(0~10)x(0.5~1.0) | 32 | 0.70 | 1.90 | 13.7~17.5 | 3.30 |
3x10mm2+(0~10)x(0.5~1.0) | 40 | 0.70 | 2.10 | 16.3~20.8 | 1.91 |
5x2.5mm2+(0~10)x(0.5~1.0) | 63 | 0.70 | 2.40 | 19.4~24.9 | 1.21 |
5x2.5mm2+(0~10)x(0.5~1.0) | 16 | 0.70 | 1.80 | 12.9~16.5 | 7.98 |
5x4mm2+(0~10)x(0.5~1.0) | 20 | 0.70 | 2.00 | 14.9~19.1 | 4.95 |
5x6mm2+(0~10)x(0.5~1.0) | 32 | 0.70 | 2.20 | 16.9~21.7 | 3.30 |
5x10mm2+(0~10)x(0.5~1.0) | 40 | 0.70 | 2.50 | 20.3~25.9 | 1.91 |
5x16mm2+(0~10)x(0.5~1.0) | 63 | 0.70 | 2.80 | 24.2~31.0 | 1.21 |
5x25mm2+(0~10)x(0.5~1.0) | 80 | 0.90 | 3.40 | 30.2~38.7 | 0.780 |
5x35mm2+(0~10)x(0.5~1.0) | 125 | 0.90 | 3.90 | 35.6~45.5 | 0.554 |
Packing & Delivery
Application Scenario
Global Exhibitions
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
