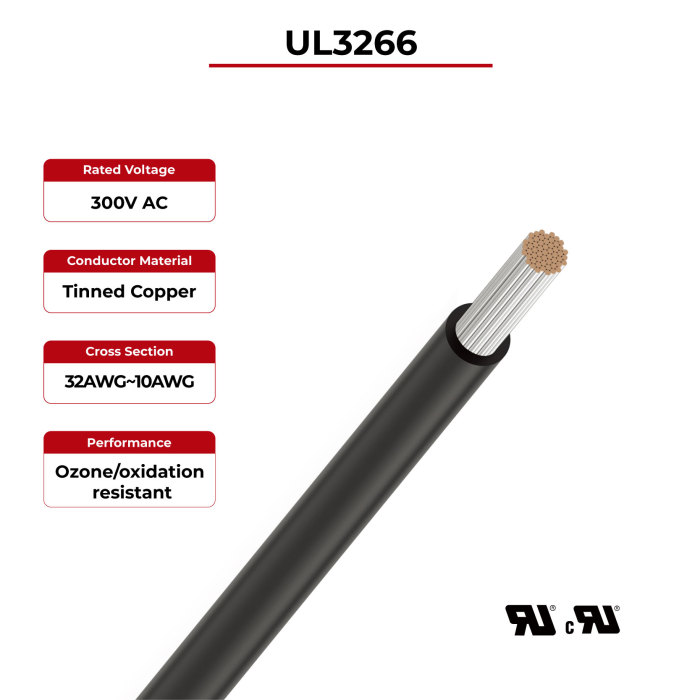

300V Energy Storage Cable UL3266
Conductor: 32AWG~10AWG
Color: Black. Optional color
Color: Black. Optional color
| Conductor | Tinned or bare copper, stranded or solid |
|---|---|
| Insulation | XLPO, RoHS compliant |
| Rated temperature | 125°C |
| Rated voltage | 300V AC |
| Flame test | Horizontal flame UL VW-1 & CSA FT1 |
| According to | UL758, UL1581 |
Detail Information
UL3266 Energy Storage Cable Advantages
UL3266 Energy Storage Cable
UL 3266 energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.
· Low smoke halogen free
· High temperature resistant
· Ozone/oxidation resistant
· High flexibility
UL3266 Energy Storage Cable Technical Data
|
Conductor
|
Tinned or bare copper, stranded or solid
|
|
|
Insulation
|
XLPO, RoHS compliant |
|
|
Rated temperature
|
125°C
|
|
|
Rated voltage
|
300Vac
|
|
According to | UL758, UL1581 | |
Flame test | Horizontal flame
UL VW-1 & CSA FT1 | |
UL3266 Energy Storage Cable Product description
Cable Name |
Cross Section
(AWG) |
Insulation Nom Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
UL3266 |
26
|
0.38
|
1.30 |
148.94 |
|
24
|
0.38
|
1.43
|
93.25 | |
22 | 0.38 | 1.58 | 55.00 | |
20 | 0.38 | 1.76 | 34.60 | |
18 | 0.38 | 2.00 | 21.80 | |
16 | 0.38 | 2.32 | 14.64 | |
14 | 0.38 | 2.70 | 9.25 | |
12 | 0.38 | 3.20 | 5.82 | |
10 | 0.38 | 4.00 | 3.66 |
