600V Solar Cable CVT JET Certified
Conductor: 38~100mm²
Insulation Color: Natural
Jacket Color: Black, red and white
Insulation Color: Natural
Jacket Color: Black, red and white
| Rated temperature | -15°C~70°C |
|---|---|
| Tested voltage | 2500V AC |
| Rated voltage | 600V |
| Reference Standard | JIS C 3005, JIS C 3605 |
| Conductor | Bare copper |
| Insulation | XLPE, Natural color |
| Jacket | PVC, Black |
Detail Information
CVT Solar Cable JET Certified Advantages

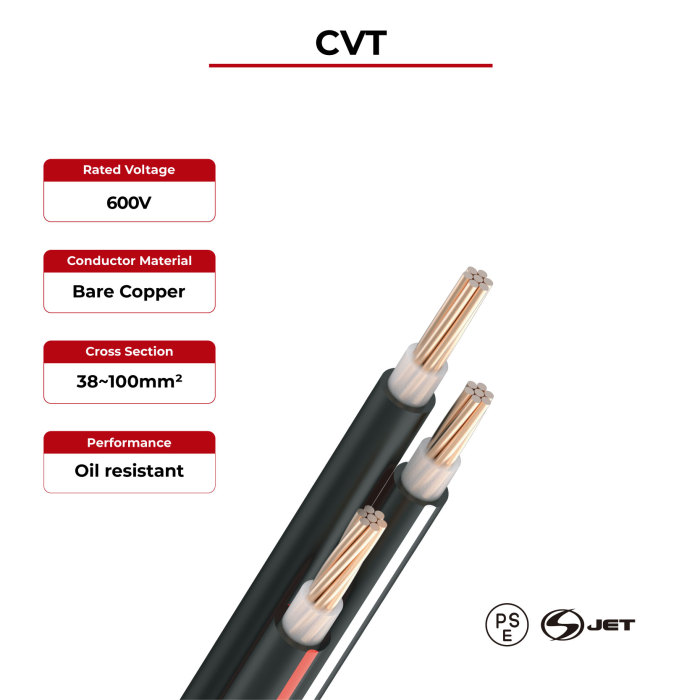

600V Solar Cable CVT JET Certified
The T in the name of CVT cable means triple, i.e. three cores, which are clearly distinguished by different colored marking strips. With the most universal 600V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test, ensuring the security and stability of Japanese market projects.
· High insulation resistance
· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
· Flame retardant JIS C 3005 (60 degrees tilt test)
CVT Solar Cable JET Certified Technical Data
|
Rated temperature
|
-15°C~70°C
|
|
Tested voltage | 2500V AC | |
|
Rated voltage
|
600V
|
|
Reference Standard | JIS C 3005, JIS C 3605 | |
CVT Solar Cable JET Certified Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable CVT JET | 38 | 1.20 | 1.50 | 27.50 | 0.491 |
60 | 1.50 | 1.50 | 32.50 | 0.311 | |
100 | 2.00 | 1.50 | 40.50 | 0.187 |
