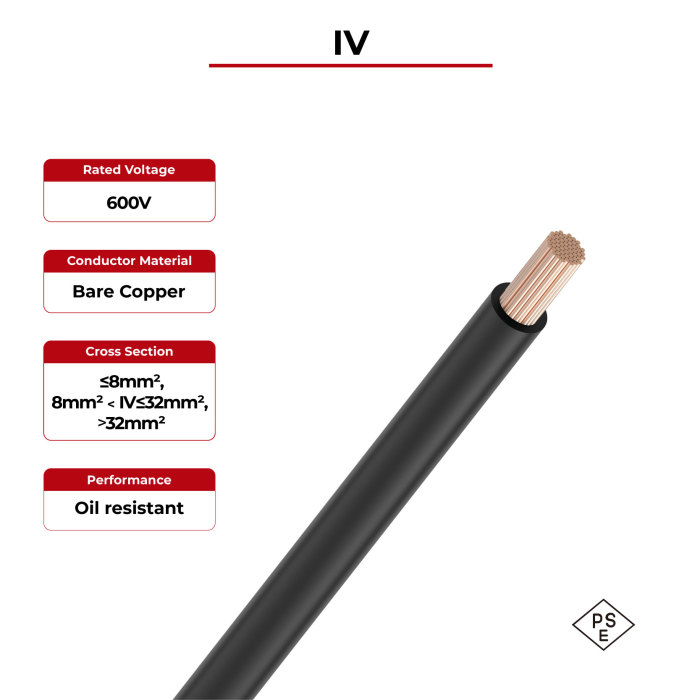

600V Solar Cable IV PSE Certificated
Conductor: 0.9~100mm²
Color: Black, white, red, green, yellow, blue or other colors
Color: Black, white, red, green, yellow, blue or other colors
| Rated temperature | 60°C |
|---|---|
| Rated voltage | 600V |
| Reference Standard | JIS C 3005 |
| Conductor | Bare copper, 0.9~100mm² |
| Insulation | PVC, Black, white, red, green, yellow, blue |
Detail Information
IV Solar Cable Advantages
600V Solar Cable IV PSE
IV cable has a single-layer structure, composed of natural color insulation and copper conductor. The insulation material is PVC, it has many colors like black, white, red, green, yellow, and blue. As a common 600V cable type, it can be used in various photovoltaic projects in the Japanese market. WIth its copper conductor, it is destined to have stronger practical application effects such as better conductivity.
· High insulation resistance
· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
IV Solar Cable Technical Data
|
Rated temperature
|
60°C
|
|
Tested voltage | 0.9~8mm²: 1500V 14~22mm²: 2000V 38~100mm²: 2500V | |
|
Rated voltage
|
600V
|
|
Reference Standard | JIS C 3005 | |
IV Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable IV PSE | 0.9 | 0.80 | 2.80 | 20.9 |
1.25 | 0.80 | 3.00 | 16.5 | |
2.0 | 0.80 | 3.40 | 9.24 | |
3.5 | 0.80 | 4.00 | 5.20 | |
5.5 | 1.00 | 5.00 | 3.33 | |
8.0 | 1.20 | 6.00 | 2.31 | |
14 | 1.40 | 7.60 | 1.30 | |
22 | 1.60 | 9.20 | 0.824 | |
38 | 1.80 | 11.50 | 0.487 | |
60 | 1.80 | 14.00 | 0.303 | |
100 | 2.00 | 17.00 | 0.180 |
