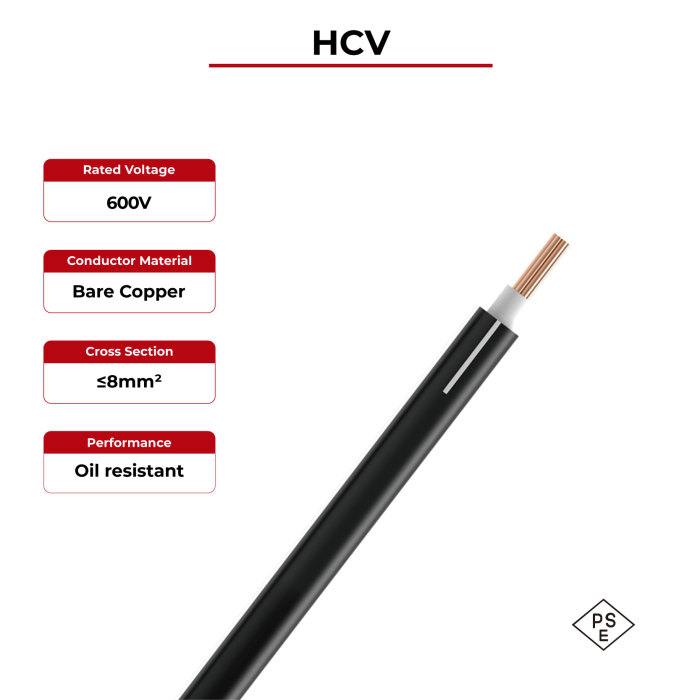

600V Solar Cable HCV PSE Certificated
Conductor: 2~8mm²
Insulation Color: White
Jacket Color: Black & white
Insulation Color: White
Jacket Color: Black & white
| Rated temperature | -15°C~90°C |
|---|---|
| Tested voltage | 1500V AC |
| Rated voltage | 600V |
| Flame Test | JIS C 3005 |
| Conductor | Bare copper, 2~8mm² |
| Insulation | XLPE, White |
| Jacket | Heat resistance PVC, Optional color |
Detail Information
HCV Solar Cable PSE Certificated Advantages
600V Solar Cable HCV PSE Certificated
There is a white stripe on the heat resistance PVC sheath of the HCV cable, which can help distinguish it from other types of cables. As a common 600V voltage cable, it can be used in various photovoltaic projects in the Japanese market. The outer sheath is made of heat-resistant PVC material and has passed the Japanese combustion test JIS C 3005, which can effectively improve the safety and stability of the solar project.
· High insulation resistance
· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
HCV Solar Cable PSE Certificated Technical Data
|
Rated temperature
|
-15°C~90°C
|
|
Tested voltage | 1500V AC | |
|
Rated voltage
|
600V
|
|
Reference Standard | JIS C 3005 | |
HCV Solar Cable PSE Certificated Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable HCV PSE | 2.0 | 0.80 | 1.50 | 6.20 | 9.24 |
3.5 | 0.80 | 1.50 | 6.70 | 5.20 | |
5.5 | 1.00 | 1.50 | 7.70 | 3.33 | |
8.0 | 1.00 | 1.50 | 8.30 | 2.31 |
