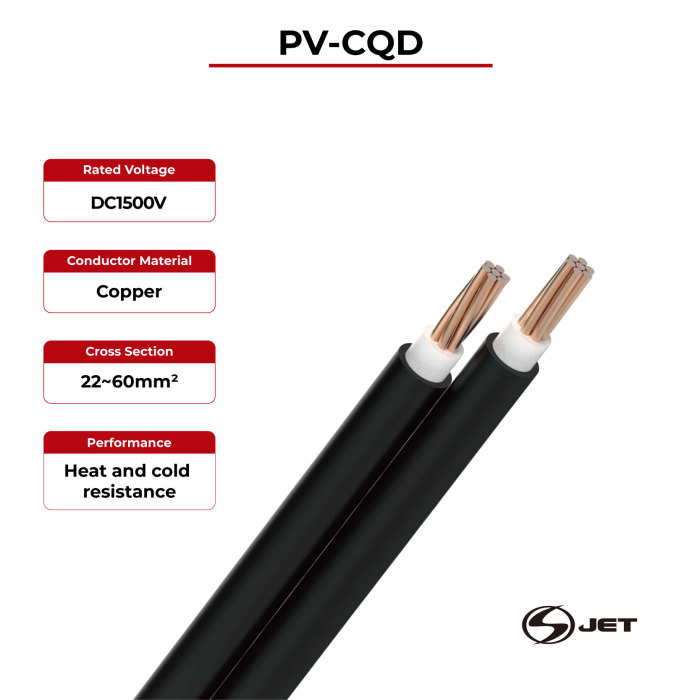

1.5kV Solar Cable PV-CQD JET Certificated
Conductor: 22~60mm²
Insulation Color: Natural
Jacket Color: Black
Insulation Color: Natural
Jacket Color: Black
| Rated temperature | -40°C~90°C |
|---|---|
| Tested voltage | 6500V AC |
| Rated voltage | 1500V DC |
| Reference Standard | JETST-CABL-001-1 (H25-10) |
| Conductor | Stranded soft copper, 22~60mm² |
| Insulation | XLPE, White |
| Jacket | XLPO, Black |
Detail Information
PV-CQD Solar Cable Advantages
1.5kV Solar Cable PV-CQD JET
The last letter D of PV-CQD means double, i.e. two cores. With the universal 1500V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JET certification and has excellent flame retardant and weather resistance, ensuring the security and stability of Japanese market projects. It uses XLPE and XLPO as cable insulation and sheath materials, which is estimated to last 25 years in photovoltaic power generation and solar system.
· Excellent flame retardant and weather resistance
· Heat and cold resistance
· Halogen free
PV-CQD Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Tested voltage | 6500V AC | |
|
Rated voltage
|
1500V DC
|
|
Reference Standard | JETST-CABL-001-1 (H25-10) | |
PV-CQD Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable PV-CQD JET | 22 | 0.90 | 1.26 | 20.60 | 0.832 |
38 | 0.90 | 1.32 | 24.60 | 0.481 | |
60 | 1.00 | 1.40 | 29.40 | 0.305 |
