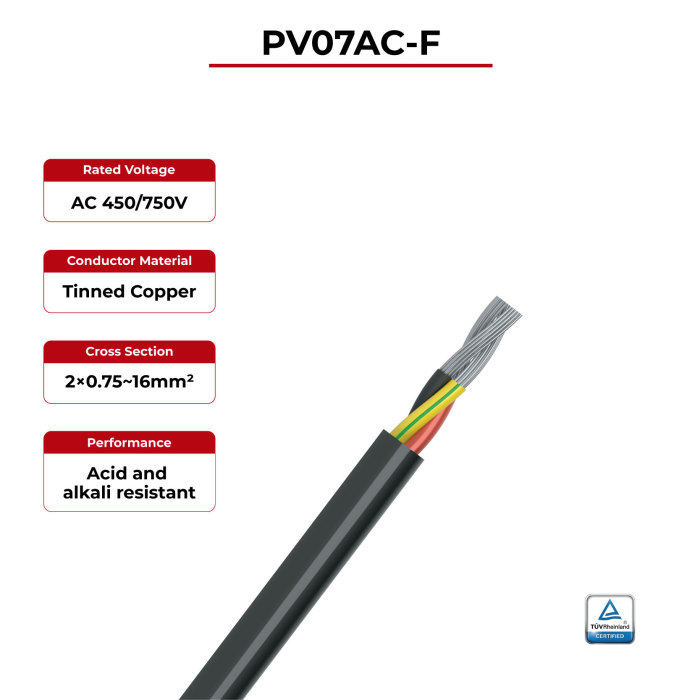

450V Solar Cable 2PfG 1940 PV07AC-F TÜV
Conductor: 1.5~16mm²
Color: Black, red, yellow/green or other colors
Color: Black, red, yellow/green or other colors
| Operating Temperature | -40°C~90°C |
|---|---|
| Max. Conductor Temperature | 120°C |
| Tested voltage | 6kVac / 5min |
| Rated voltage | 450 / 750V |
| Conductor | Tinned copper 1.5mm²~16mm² |
| Insulation | XLPE |
| Jacket | XLPE, Color black |
| Flame Test | IEC60332-1 |
Detail Information
2PfG 1940 PV07AC-F Solar cable Advantages
450V Solar Cable 2PfG 1940 PV07AC-F TÜV
AC cables on the AC application end of new energy systems are used in photovoltaic CSP systems and wind power systems. 2PfG 1940 PV07AC-F solar cable has 2C, 3C, 4C and 5C cores for chosen, and passed flame test IEC60332-1. With the above characteristics, this cable is destined to be suitable for AC applications.
· Low smoke halogen-free
· Flame retardant IEC60332-1
· High flexibility
· Low temperature resistance
· Acid and alkali resistant
2PfG 1940 PV07AC-F Solar cable Technical Data
|
Operating Temperature
|
-40°C~90°C
|
|
Max. Conductor Temperature | 120°C | |
Tested voltage | 6kVac / 5min | |
|
Rated voltage
|
450 / 750V
|
|
2PfG 1940 PV07AC-F Solar cable Product description
Cable Name |
Cores No.
|
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Insulation O.D.
(mm) |
Outer Sheath Nom
Thickness (mm) | Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
450V Solar Cable 2PfG 1940 PV07AC-F TÜV | 3 | 2.5 | 0.80 | 3.80 | 1.02 | 10.30 | 8.21 |
4 | 0.80 | 4.30 | 1.16 | 11.30 | 5.09 | ||
6 | 0.80 | 4.80 | 1.32 | 13.10 | 3.39 | ||
10 | 0.80 | 5.80 | 1.60 | 15.80 | 1.95 | ||
4 | 2.5 | 0.80 | 3.80 | 1.15 | 11.50 | 8.21 | |
4 | 0.80 | 4.30 | 1.30 | 13.00 | 5.09 | ||
6 | 0.80 | 4.80 | 1.48 | 14.60 | 3.39 | ||
10 | 0.80 | 5.80 | 1.79 | 17.60 | 1.95 | ||
5 | 2.5 | 0.80 | 3.80 | 1.28 | 12.90 | 8.21 | |
4 | 0.80 | 4.30 | 1.46 | 14.60 | 5.09 | ||
6 | 0.80 | 4.80 | 1.65 | 16.40 | 3.39 | ||
10 | 0.80 | 5.80 | 2.00 | 19.80 | 1.95 |
