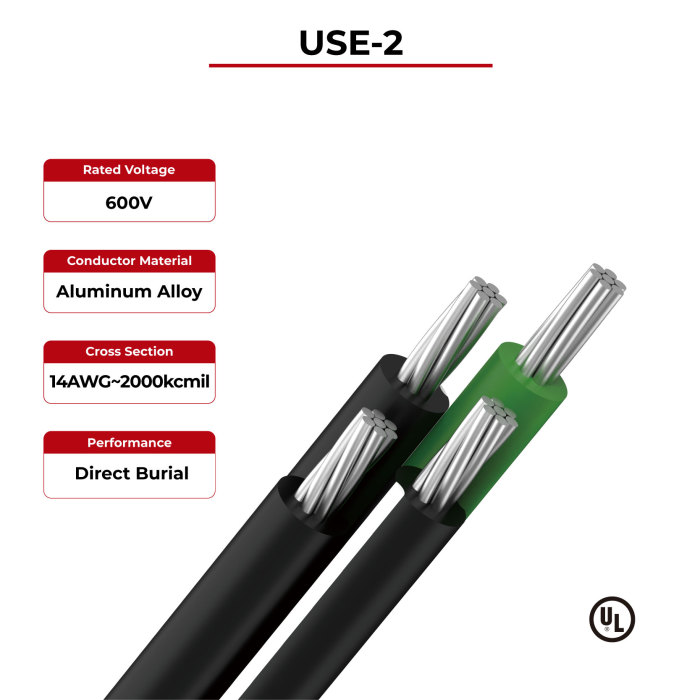

600V Solar Cable USE-2 UL Certificated
Conductor: 14AWG~2000kcmil
Insulation Color: Black, Type USE-2
Ground Cable Color: Green
Insulation Color: Black, Type USE-2
Ground Cable Color: Green
| Rated temperature | -40°C~90°C |
|---|---|
| Rated voltage | 600V |
| Insulation | XLPE, Type USE-2 |
| Ground | Green |
| Conductor | Class B, Aluminum alloy |
| Reference Standard | UL854, UL1893 |
Detail Information
USE-2 Solar Cable Advantages
600V Solar Cable USE-2 UL
This mobile home feeder USE-2 has aluminum conductor and 600V voltage, is intended for the connection of mobile homes to a supply of electricity where permanent wiring is required as specified in the 2011 National Electrical Code. Suitable for direct burial in the earth at conductor temperatures not to exceed 90°C. The green cable in the picture is the grounding cable of use-2, which is one of the reasons why it is suitable for direct burial underground in the house.
· Can be buried directly
· Wearable tubes and slots
· Can be used in wet and dry environments
USE-2 Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
|
Rated voltage
|
600V
|
|
Reference Standard | UL854, UL1893 | |
USE-2 Solar Cable Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) | Ground Size (AWG) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,25°C) |
600V Solar Cable USE-2 UL | 2 | 1.52 | 1x6 | 24.16 | 0.267 |
2 | 1.52 | 1x4 | 24.16 | 0.267 | |
2/0 | 2.03 | 1x4 | 33.35 | 0.133 | |
2/0 | 2.03 | 1x1 | 33.35 | 0.133 | |
4/0 | 2.03 | 1x4 | 39.42 | 0.084 | |
4/0 | 2.03 | 1x2/0 | 39.42 | 0.084 |
