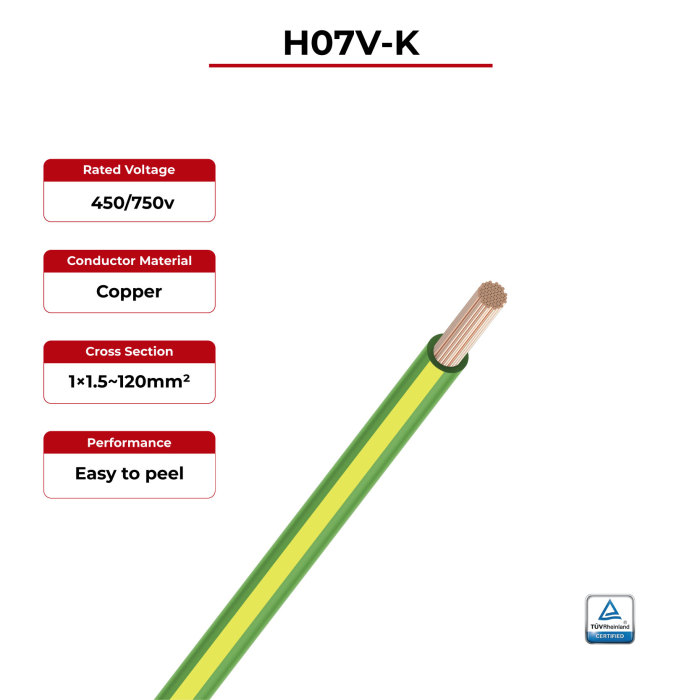

450/750V Solar Cable Copper Conductor H07V-K
Conductor: 1.5~120mm²
Insulation Color: yellow & green
Insulation Color: yellow & green
| Conductor | Stranded, tinned, or bare copper conductor |
|---|---|
| Insulation | PVC, RoHS compliant |
| Rated temperature | -15°C~70°C |
| Rated voltage | 450/750V |
| Reference Standard | EN50525-2-31 |
| Conductor | Tinned or bare copper 1.5~120mm² |
| Insulation | PVC |
| Flame Test | IEC60332-1 |
Detail Information
H07V-K Solar Cable Advantages
450/750V Solar Cable Copper Conductor H07V-K
H07V-K is suitable for rated voltages of 450/750V and is a 70°C PVC insulated flexible conductor. Suitable for internal wiring in electric cabinets, switchboards, motors and other electric equipment. Its advantages include easy peeling and cutting, good flexibility, this can reduce the difficulty of construction for workers in actual project application, thereby saving project costs and improving project efficiency. At the same time, its high concentricity and good flame retardancy also ensure the safety and stability of the project.
· Easy to peel
· Easy to cut
· High flexibility
· High concentricity
· High flame retardant
· Flame retardant IEC60332-1
H07V-K Solar Cable Technical Data
|
Conductor
|
Stranded, tinned, or bare copper conductor 1.5~120mm²
|
|
|
Insulation
|
PVC, RoHS compliant |
|
|
Rated temperature
|
-15°C~70°C
|
|
|
Rated voltage
|
450/750V
|
|
Reference Standard | EN50525-2-31 | |
H07V-K Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
450/750V Solar Cable Copper Conductor H07V-K |
1.5
|
0.70
|
3.10
|
13.3 |
|
2.5
|
0.80
|
3.75
|
7.98 | |
4 | 0.80 | 4.30 | 4.95 | |
6 | 0.80 | 5.20 | 3.30 | |
10 | 1.00 | 6.50 | 1.91 | |
16 | 1.00 | 7.80 | 1.21 | |
25 | 1.20 | 9.70 | 0.780 | |
35 | 1.20 | 11.30 | 0.554 | |
50 | 1.40 | 13.50 | 0.386 | |
70 | 1.40 | 15.40 | 0.272 | |
95 | 1.60 | 17.50 | 0.206 | |
120 | 1.60 | 19.50 | 0.161 |
