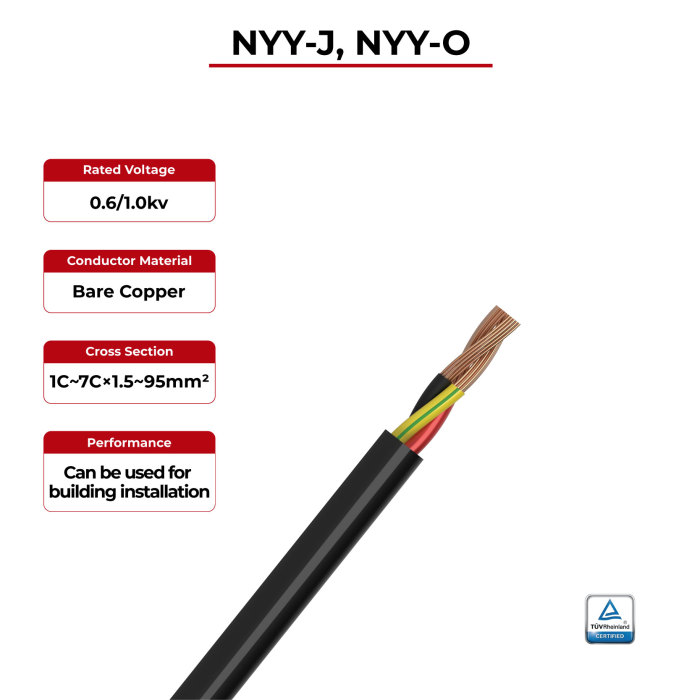

600V Solar Cable Copper Conductor NYY-J, NYY-O
Conductor: 1C~7C×1.5~95mm²
Color: ≤ 5 cores: differentiated by color; ≥ 6 cores: Black, numbered in white
Color: ≤ 5 cores: differentiated by color; ≥ 6 cores: Black, numbered in white
| Tested voltage | 4000V |
|---|---|
| Rated voltage | U0/U: 0.6/1.0kV |
| Reference Standard | IEC 60502-1 |
| Conductor | Bare copper, Single or multi-wire |
| Insulation | PVC |
| Jacket | PVC |
| Protective Conductor | J=With GN-YE protective conductor |
| During installation | -5°C ~ +50°C |
| Fixed installation | -40°C ~ +70°C |
Detail Information
NYY-J, NYY-O Solar Cable Advantages
600V Solar Cable Copper Conductor NYY-J, NYY-O
NYY cables have TÜV certification and can be widely used in buildings, energy storage systems and other scenarios in European countries. The insulation layer and sheath layer of the cable are both made of PVC material, which is soft and easy to lay in the building. In addition, the PVC material can effectively ensure the cable's moisture-proof and dust-proof capabilities, overcoming the effects of humidity under weather conditions in construction sites and dust in confined spaces.
· Flame retardant IEC60332-1
· Can be used for building installation
NYY-J, NYY-O Solar Cable Technical Data
Core Identification Code | ≤ 5 cores: differentiated by color
≥ 6 cores: Black, numbered in white | |
Protective Conductor | J=With GN-YE protective conductor O=Without productive condoctor | |
|
Rated temperature
|
During installation: -5°C ~ +50°C
Fixed installation: -40°C ~ +70°C |
|
Tested voltage | 4000V | |
|
Rated voltage
|
U0/U: 0.6/1.0kV
|
|
Reference Standard | IEC 60502-1 | |
NYY-J, NYY-O Solar Cable Product description
Cable Name |
Number of cores
and mm² per conductor |
Insulation Thickness
(mm) |
Insulation O.D. (mm) |
Outer Layer Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable Copper Conductor NYY-J | 1x25 | 1.20 | 8.20 | 1.40 | 11.00 | 0.780 |
1x35 | 1.20 | 11.30 | 1.40 | 14.10 | 0.554 | |
1x50 | 1.40 | 12.80 | 1.50 | 15.80 | 0.386 | |
1x70 | 1.40 | 14.70 | 1.50 | 17.70 | 0.272 | |
4x25 | 1.20 | 8.20 | 1.80 | 23.60 | 0.780 | |
5x25 | 1.20 | 8.20 | 1.80 | 26.00 | 0.780 | |
600V Solar Cable Copper Conductor NYY-O | 1x25 | 1.20 | 8.20 | 1.40 | 11.00 | 0.780 |
1x35 | 1.20 | 11.30 | 1.40 | 14.10 | 0.554 | |
1x50 | 1.40 | 12.80 | 1.50 | 15.80 | 0.386 | |
1x70 | 1.40 | 14.70 | 1.50 | 17.70 | 0.272 | |
1x95 | 1.60 | 17.00 | 1.60 | 20.20 | 0.206 | |
4x25 | 1.20 | 8.20 | 1.80 | 23.60 | 0.780 | |
5x25 | 1.20 | 8.20 | 1.80 | 26.00 | 0.780 | |
5x70 | 1.40 | 14.70 | 2.40 | 45.30 | 0.272 |
