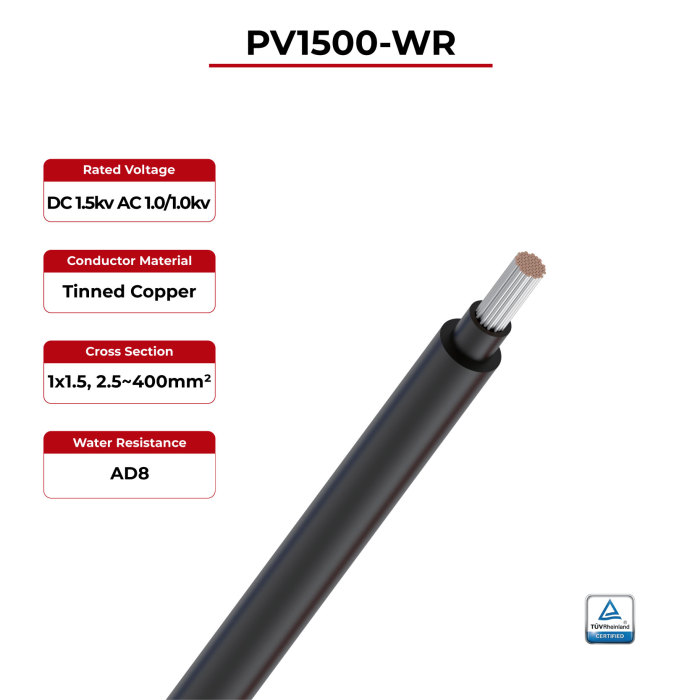

1.5kV Solar Cable Copper Conductor 2PfG 2750 PV1500-WR
1.5kV Solar Cable Copper Conductor 2PfG 2750 PV1500-WR
Conductor: 2.5~240mm²
Insulation Color: Black
Jacket Color: Black
Insulation Color: Black
Jacket Color: Black
| Rated temperature | -40°C~90°C |
|---|---|
| Max. Short Circuit Temp | 250°C / 5s |
| Tested voltage | 6.5kVAC / 5min |
| Max. Voltage | Um=1800V DC |
| Voltage Rating | DC 1500V U0/U=1000V |
| Conductor | Tinned copper 2.5~240mm² |
| Insulation | XLPO, Black |
| Jacket | XLPO, Black |
| Floating PV Certification | TÜV 2PfG 2750 |
| Flame test | IEC 60332-1 |
Detail Information
2PfG 2750 PV1500-WR Solar Cable Advantages
1.5kV Solar Cable Copper Conductor 2PfG 2750 PV1500-WR
The floating solar cable is specially designed for floating power stations, compatible with all major connectors, passed TÜV 2PfG 2750/09.20 standards, suitable for photovoltaic power generation fields such as floating surface power stations.
· Higher UV-stability
· TUV 2PfG 2750 Floating PV Certification
· Highter water resistance
· Higher mechanical stability
· Higher insulation resistance
· Flame retardant lEC 60332-1
2PfG 2750 PV1500-WR Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Max. Short Circuit Temp | 250°C / 5s | |
Tested voltage | 6.5kVAC / 5min | |
|
Max. Voltage
|
Um=1800V DC
|
|
Voltage Rating | DC 1500V
U0/U=1000V | |
Test Item | Change of capacitance on complete cable Long term resistance of in sulation to d.c. on complete cable | |
2PfG 2750 PV1500-WR Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Copper Conductor 2PfG 2750 PV1500-WR | 2.5 | 0.70 | 3.50 | 0.80 | 5.20 | 8.21 |
4 | 0.70 | 3.85 | 0.80 | 5.50 | 5.09 | |
6 | 0.70 | 4.45 | 0.80 | 6.10 | 3.39 | |
10 | 0.80 | 5.70 | 0.80 | 7.30 | 1.95 | |
16 | 0.90 | 7.35 | 0.90 | 9.20 | 1.24 | |
25 | 1.00 | 8.95 | 1.00 | 11.00 | 0.795 | |
35 | 1.10 | 10.45 | 1.10 | 12.70 | 0.565 | |
50 | 1.20 | 12.10 | 1.20 | 14.80 | 0.393 | |
70 | 1.20 | 14.10 | 1.20 | 16.80 | 0.277 | |
95 | 1.30 | 15.90 | 1.30 | 18.80 | 0.210 | |
120 | 1.30 | 17.70 | 1.30 | 20.80 | 0.164 | |
150 | 1.40 | 20.00 | 1.40 | 23.30 | 0.132 | |
185 | 1.60 | 22.70 | 1.60 | 26.40 | 0.108 | |
240 | 1.70 | 24.50 | 1.70 | 28.40 | 0.0817 |
